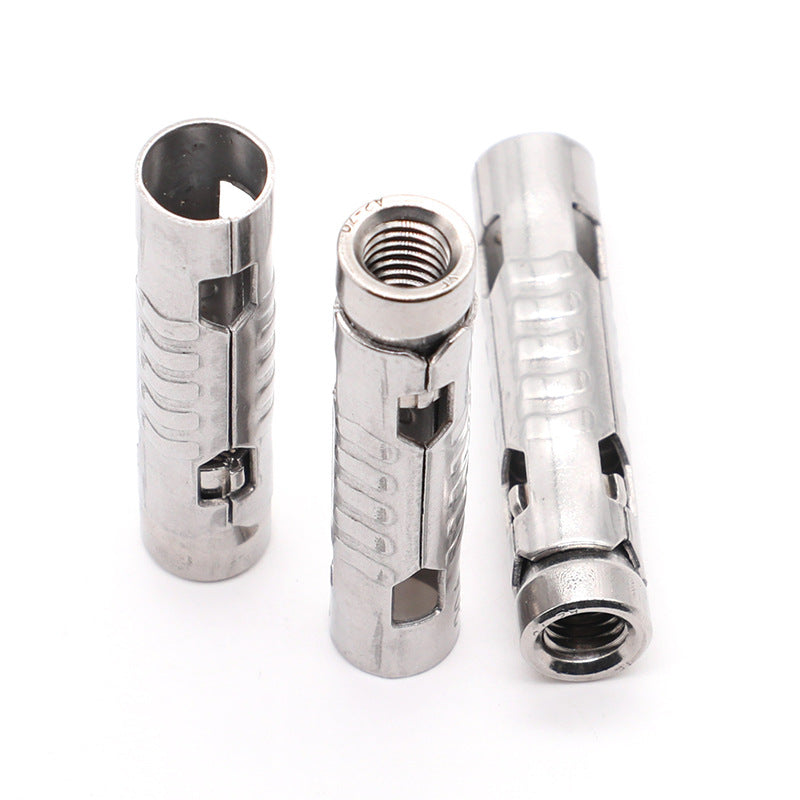

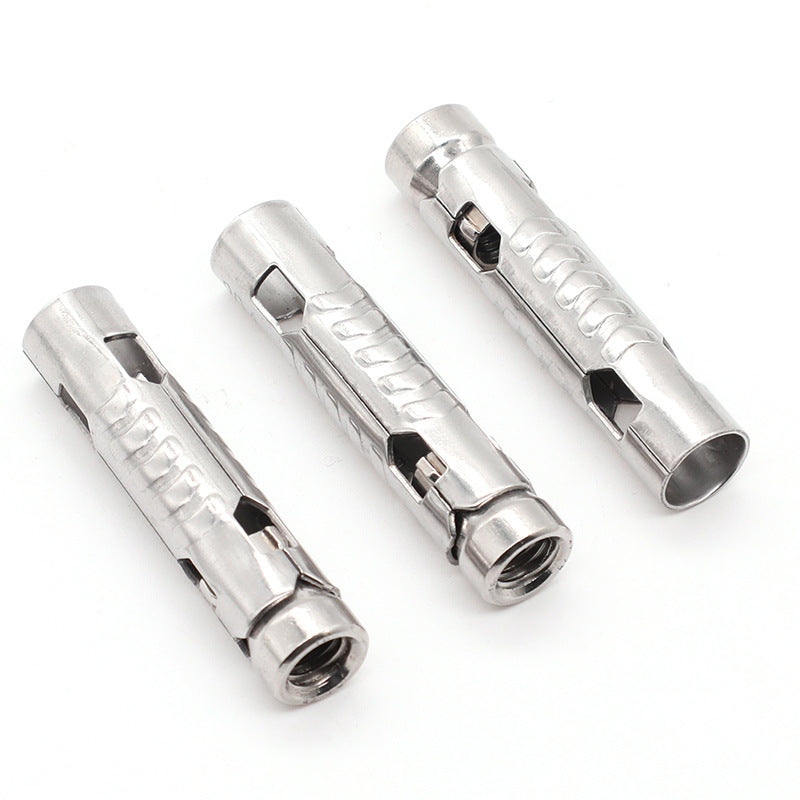

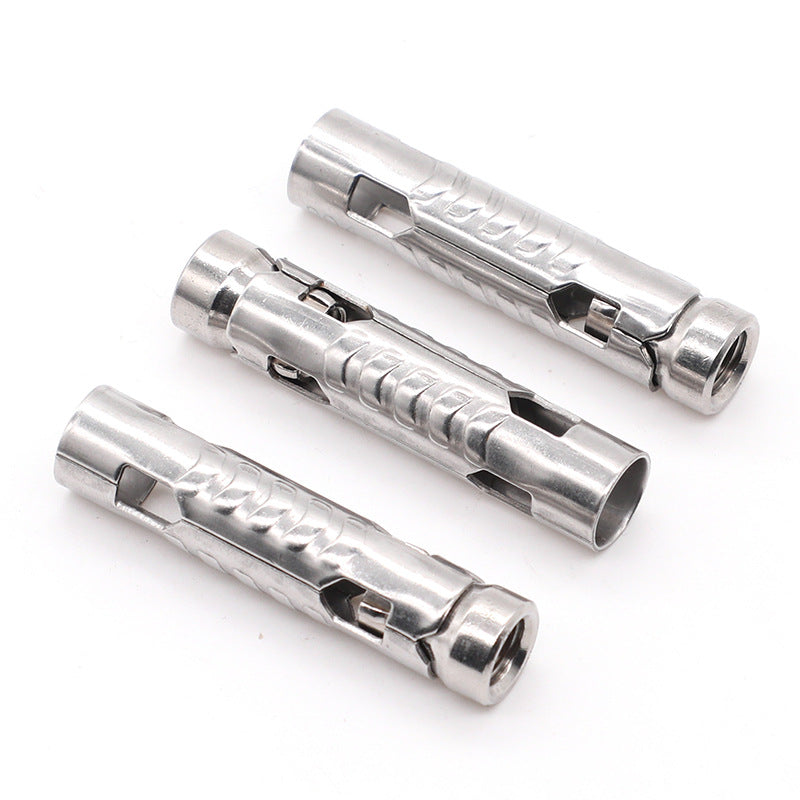

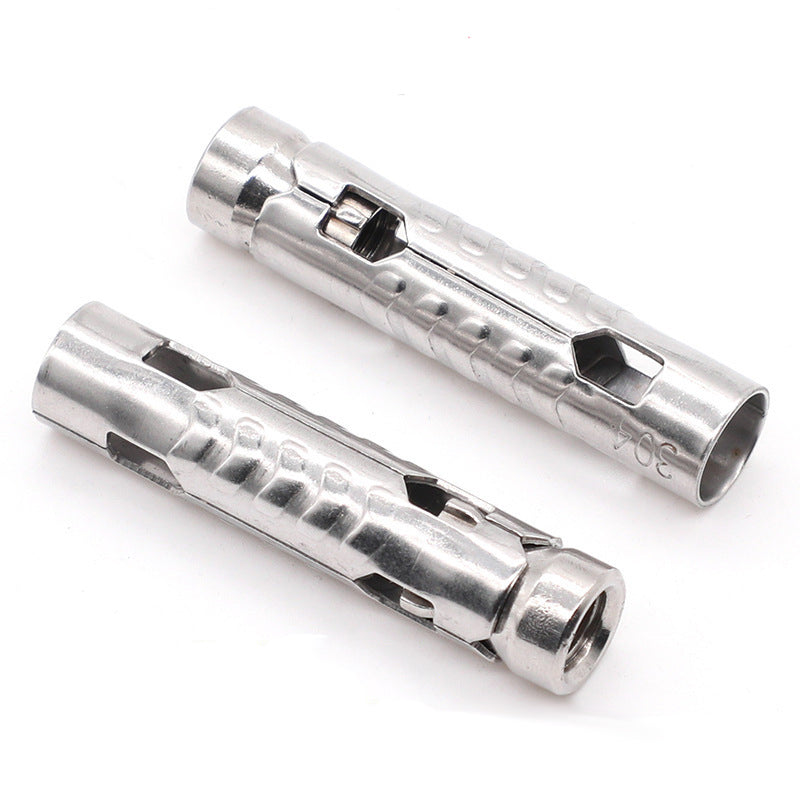

Tam Shield Anchor

Being available to assemble loose bolt, stud, eye bolt and hook bolt

Base Material

• concrete
• Masonary Brickwork
• Solid wall
• Stone

Advantage

• Easily to complete with loose bolt, stud, eye bolt and hook bolt when installing
• Suitable for medium-heavy duty loading purpose.
• Retaining power can be removed easily to pull down the cone nut.
• Design double anti-rotation fins to prevent rotation in hole wall.
• Scales shape on surface to increase friction in the pre-drilled hole during installation
• A red plastic plug inserted for dust-proof
• Quick and easy to install and use

Applications

▲Railings, special door industry, wall panels.
▲ Installation of spacer signs, handrails, railings, shelves, and gates.
▲ Installation of console grilles and fences and installation of heavy machinery.
▲Pipeline installation engineering/pipe support.
▲ Cables and towers.
▲Installation of railing starter rods for structural expansion and rectification projects.
▲Structural expansion and rectification project.
▲ Curtain wall, cladding and precast concrete components.

Installations

1. Drill a hole in the base material to ensure the correct diameter and embedment depth.
2. Use a nylon brush or high pressure air pump to remove all debris and dust.
3. Insert tam shield anchor into the drilled hole until being flush with the surface.
4. Pass a fastener through a guide hole in the fixture and vertically aligned with and close to a substrate hole.
5. To tighten by tool until be fixed fully.
