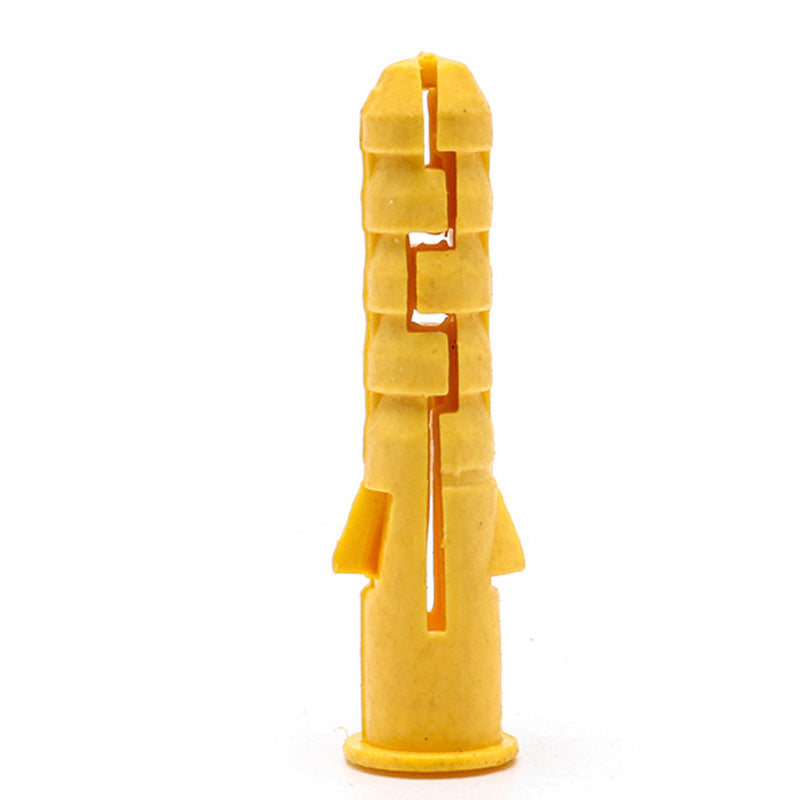

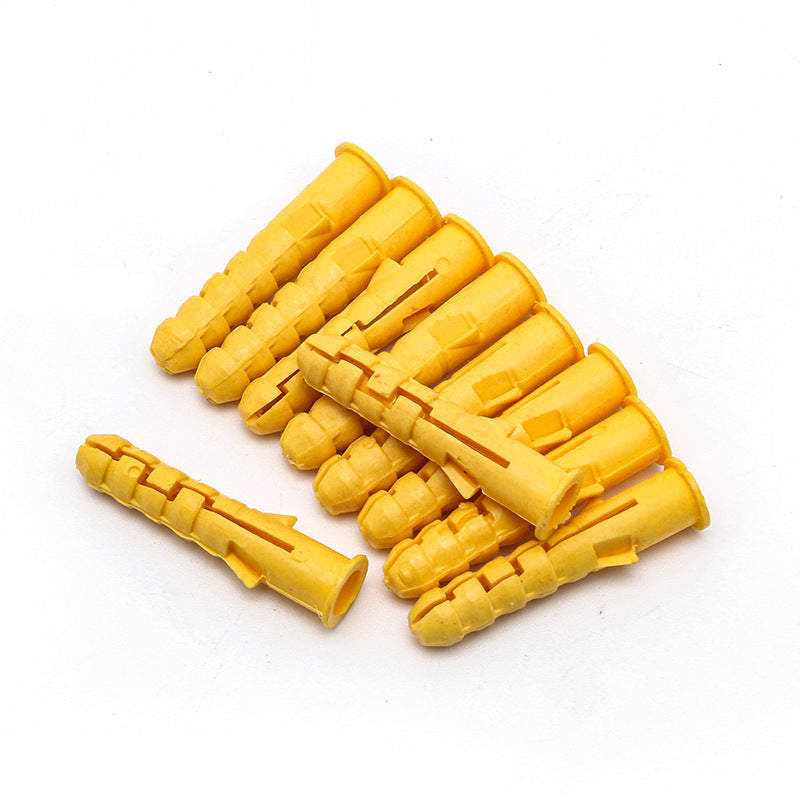

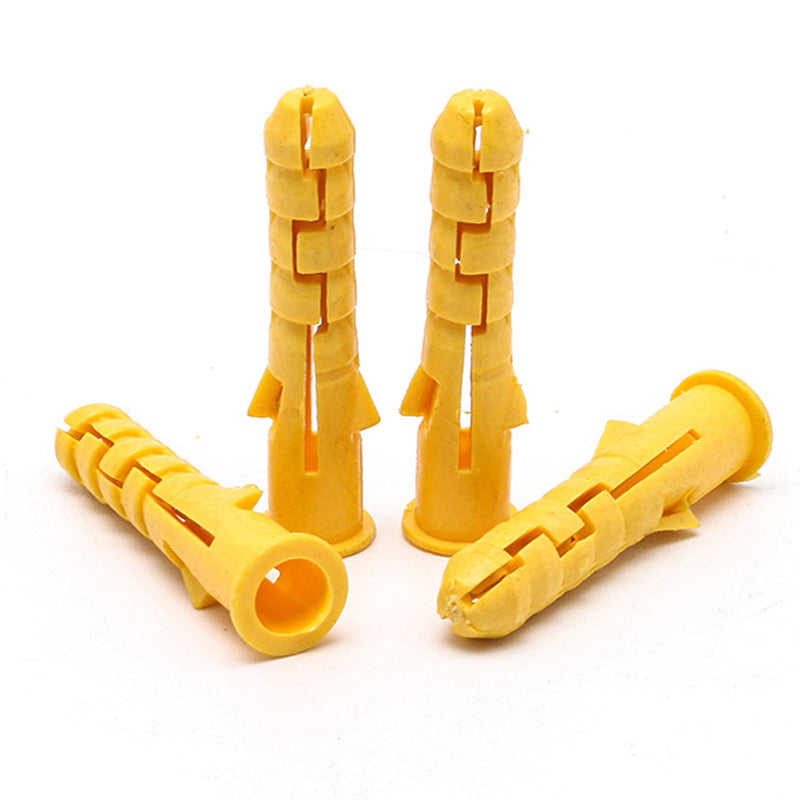

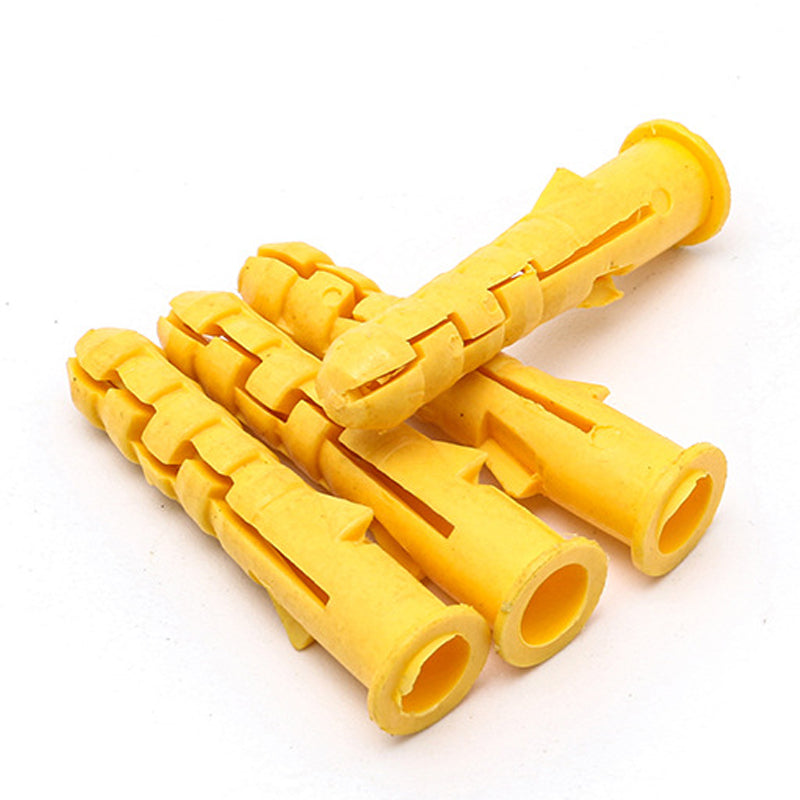

Nylon Wall Plug
Nylon Wall Plug
Material &Color: Nylon PA or PE & various color are avaiable
| Drill Hole Dia.(mm) | Drill Hole Depth (mm) | Plug Length (mm) | Screw Gauge (mm) | Screw Dia. (mm) | ||||||||||
| 5 | 30 | 25 | 4-6 | 2.5-3.5 | ||||||||||
| 6 | 35 | 30 | 6-10 | 3.5-5.0 | ||||||||||
| 7 | 35 | 30 | 8-12 | 4.0-5.5 | ||||||||||
| 8 | 45 | 40 | 10-14 | 5.0-6.0 | ||||||||||
| 10 | 55 | 50 | 14-18 | 6.0-8.0 | ||||||||||
| 12 | 70 | 60 | 18-24 | 8.0-10.0 | ||||||||||
| 14 | 80 | 70 | 24-32 | 10.0-12.0 | ||||||||||
Advantage
- Easy to install
- Can be used with most type of screws
- Notched wings to prevent rotation in the wall while inserting the screw
Application
- Solid concrete
- Dense concrete blocks
- Solid bricks
- Stone
- Aerated concrete blocks
- Bathroom fixtures
- Electrical boxes
- Fire alarms
- Lighting fixtures
- Ornamental fixtures
- Picture frames
- Shelvings

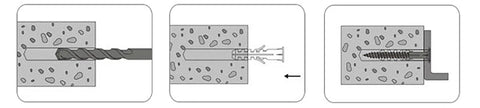

Installation
- Drill a pilot hole into the wall
- Insert the Plastic Screw Anchor into drywall.
- Insert the screw through the object you need to afix and insert into the Plastic Screw Anchor.
- Turn clockwise until a firm resistance.
