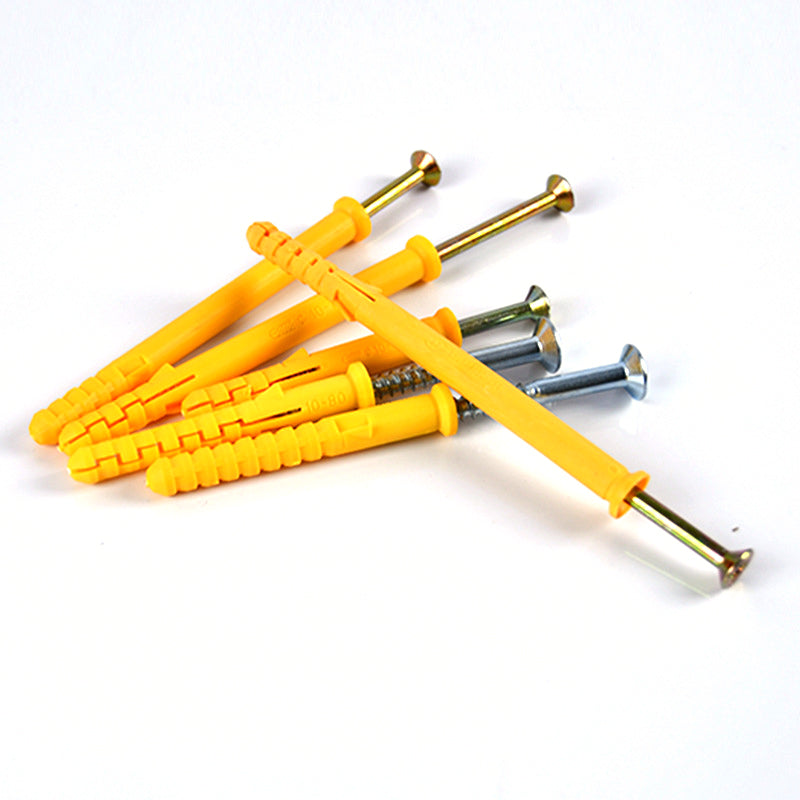

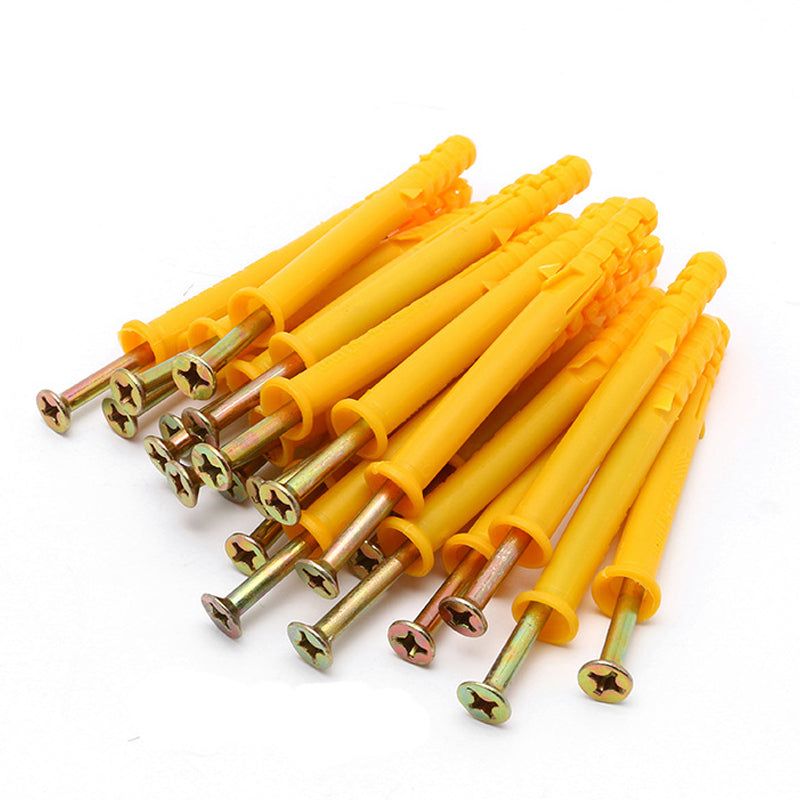

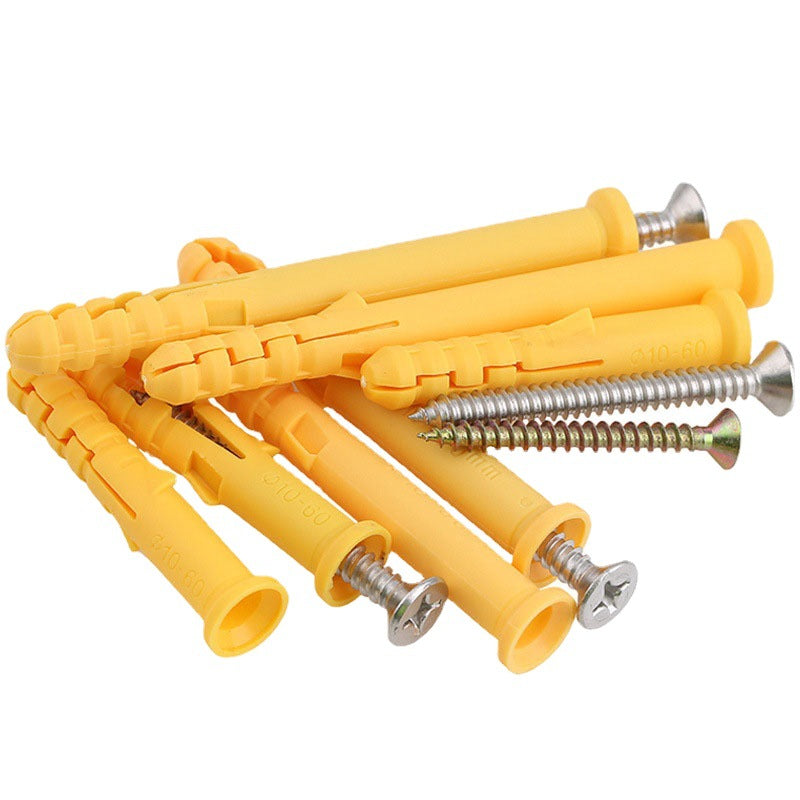

Nylon Framing Fixing anchor
Nylon Framing Fixing anchor
Material &Color: Nylon PA Plastic & various color are avaiable

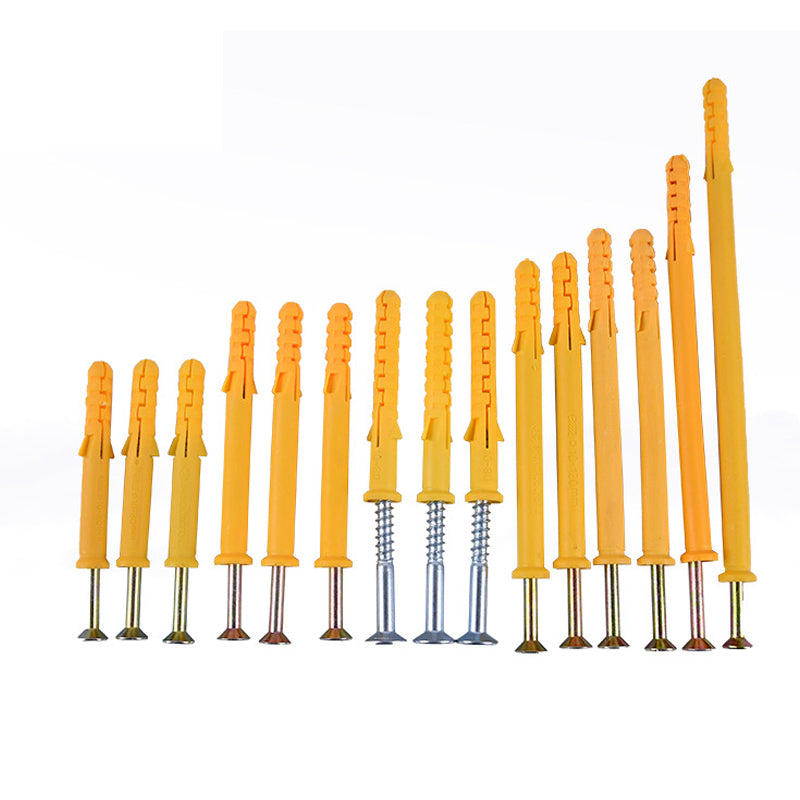

| Anchor Size | Plug Dia. | Plug length | Screw Size |
| 6*30 | 6 | 30 | 4.2*35 |
| 6*40 | 6 | 40 | 4.2*45 |
| 6*60 | 6 | 60 | 4.2*65 |
| 6*80 | 6 | 80 | 4.2*85 |
| 8*40 | 8 | 40 | 5*45 |
| 8*60 | 8 | 60 | 5*65 |
| 8*80 | 8 | 80 | 5*85 |
| 8*100 | 8 | 100 | 5*105 |
| 10*50 | 10 | 50 | 6*55 |
| 10*60 | 10 | 60 | 6*65 |
| 10*80 | 10 | 80 | 6*85 |
| 10*100 | 10 | 100 | 6*105 |
| 10*120 | 10 | 120 | 6*125 |
| 10*140 | 10 | 140 | 6*145 |
| 10*160 | 10 | 160 | 6*165 |
Advantage
- Being suitable for light madium duty loading purpose
- Quick and easy to install
Application
- Timber Battens
- Door frames
- Wooden window frames
- Light Facade support

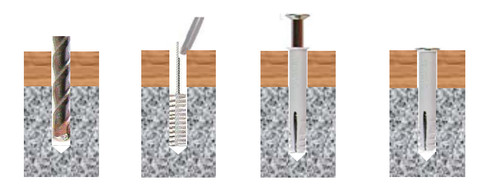

Installation
- Drill correct diameter hole through fixture to correct depth in base material.
- Clean hole by brushing and blowing
- Insert frame fixing through fixture into base material and tighten screw
