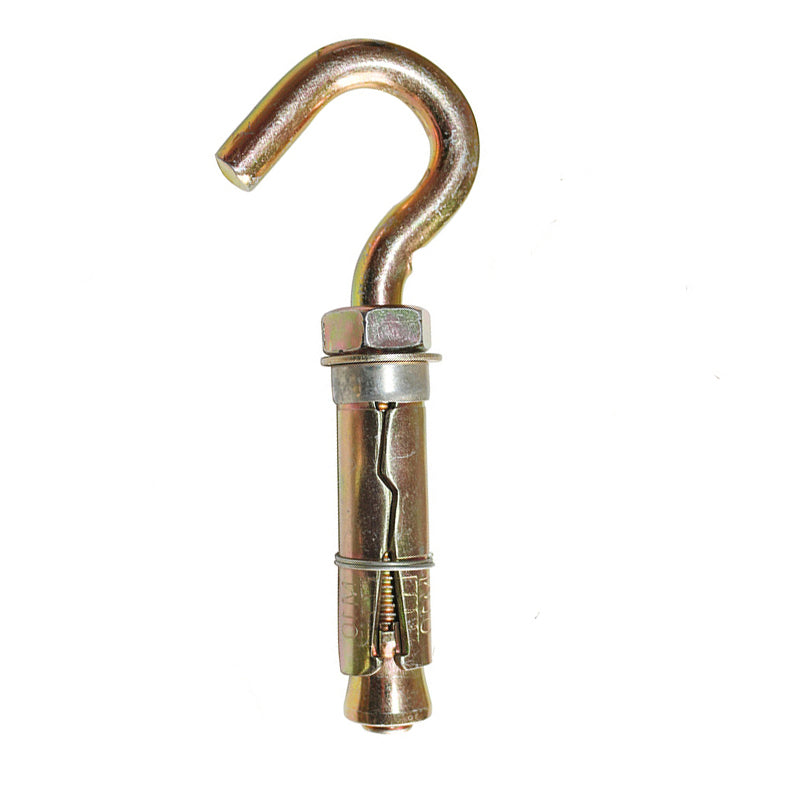

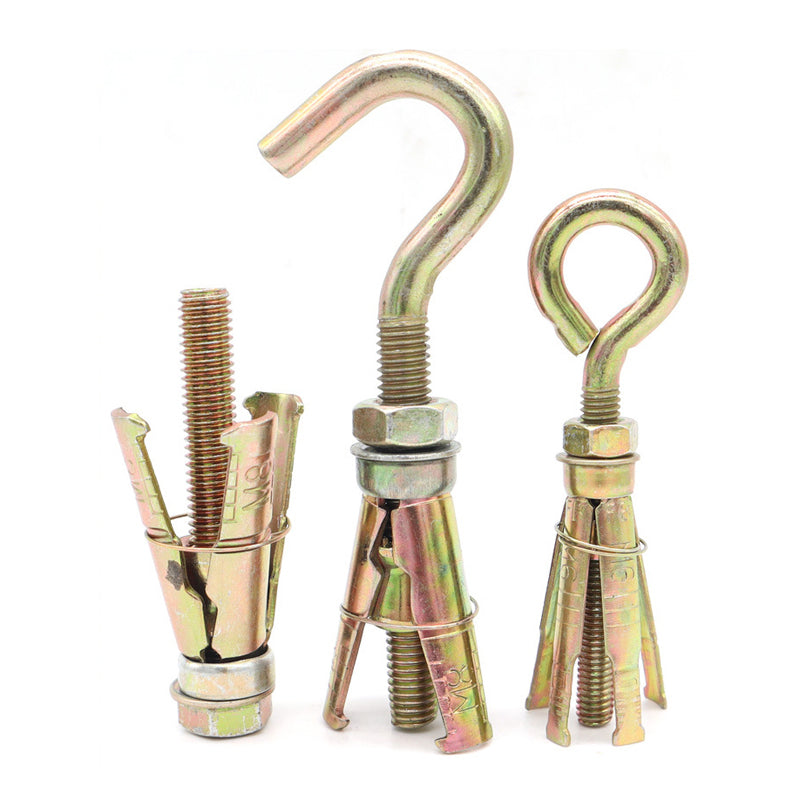

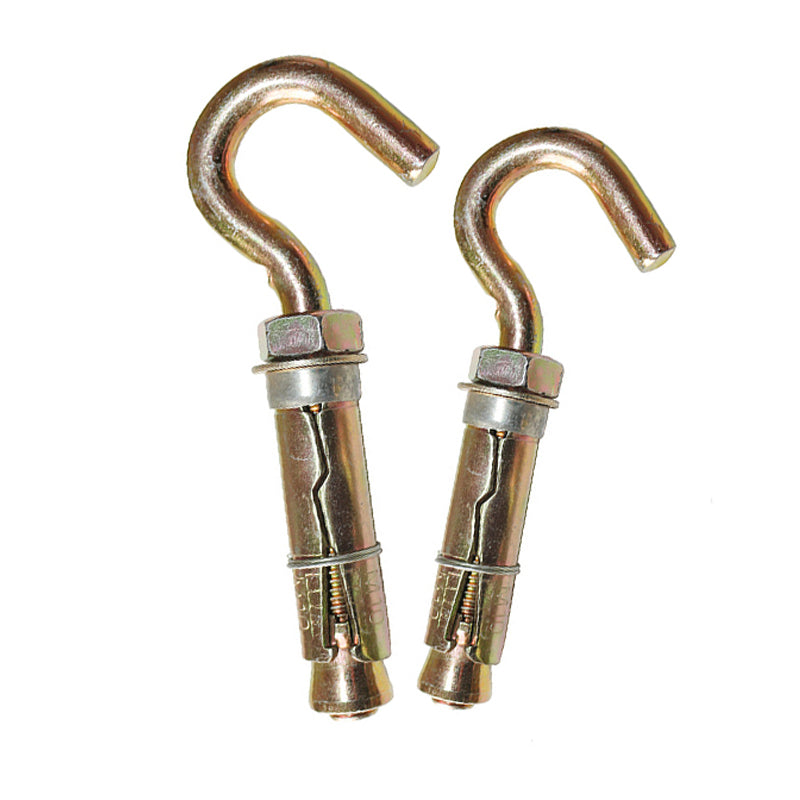

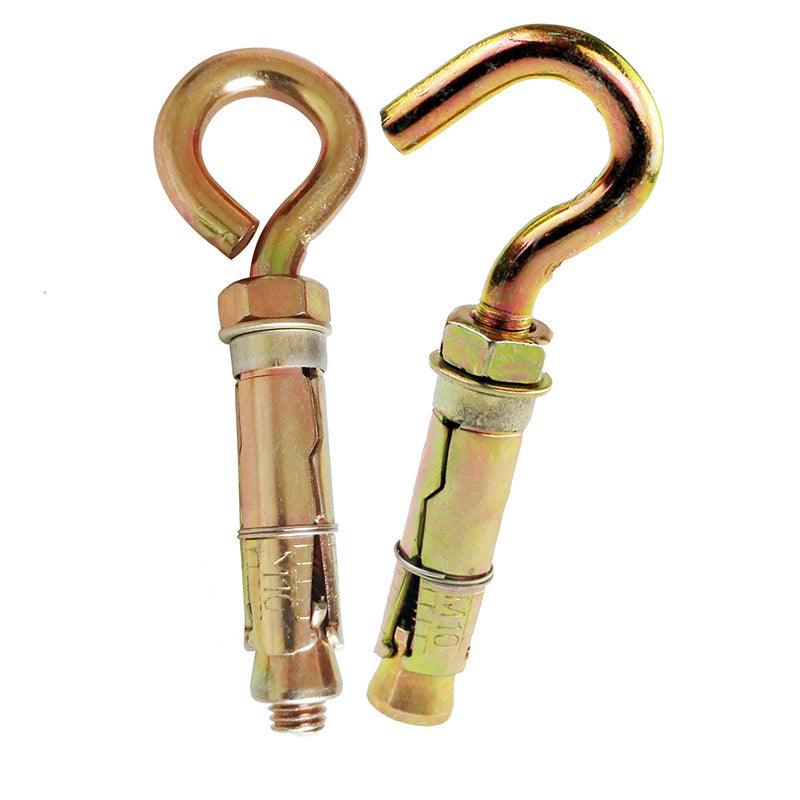

Hook Bolt Shield Bolt
Hook Bolt Shield Bolt
Material: Stainless Steel, Carbon Steel
Finish: Plain, Zinc Plated
| Bolt Size | Shield Length(mm) | Overall Length(mm) |
| M6 | 45 | 75 |
| M8 | 50 | 100 |
| M10 | 60 | 110 |
| M12 | 75 | 140 |
The special hook bolt size are available.
Applications
- Concrete
- Concrete blocks
- Bricks
- Other natural stone
- Supporting Guy ropes, stays & cables
- Supporting ladder restraints
Installation
- Drill a hole of required diameter and depth.
- Clean hole by brushing and blowing to remove drilling debris and dust.
- Insert the eye bolt shield anchor into hole
- Tighten to recommended torque, using the nut
